Clean air technology for a better world

Dust Collectors

DUCLEAN is an eco-friendly company dedicated to environmental protection.

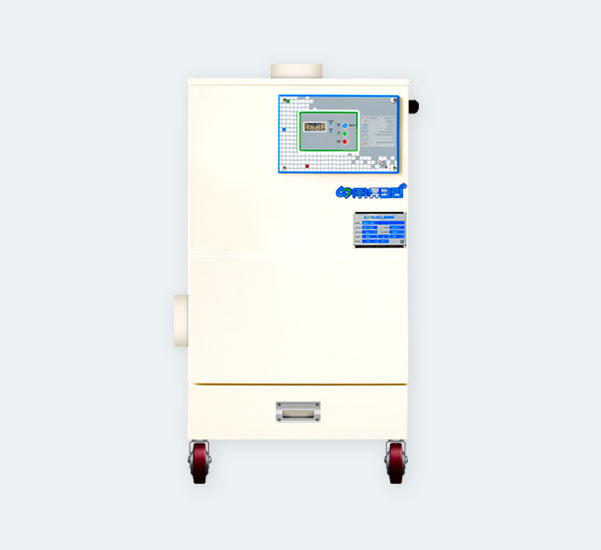

Vacuum Bag Filter Dust Collector

MSR Series

Features

High-static-pressure vacuum dust collector for extended continuous use

Filter Type

Bag Filter

Applications

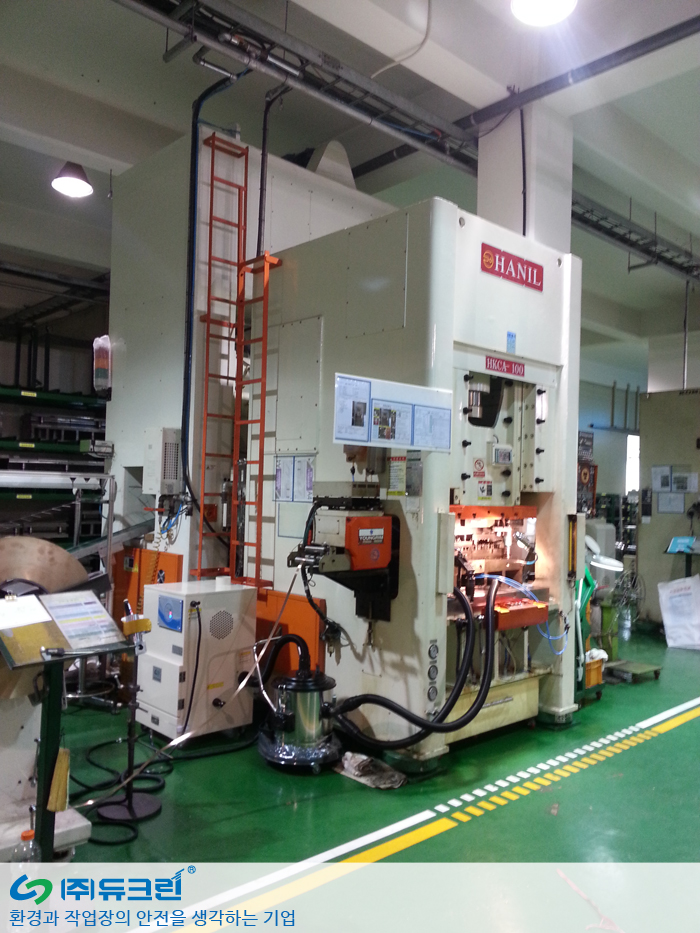

PCB machining, metalworking, laser processing, cast iron, cast steel gouging operations

Specifications

TYPE	Power	Airflow (CMM)	Static Pressure (mmAq)	Motor (kW)	Dimensions (mm)					Weight (kg)

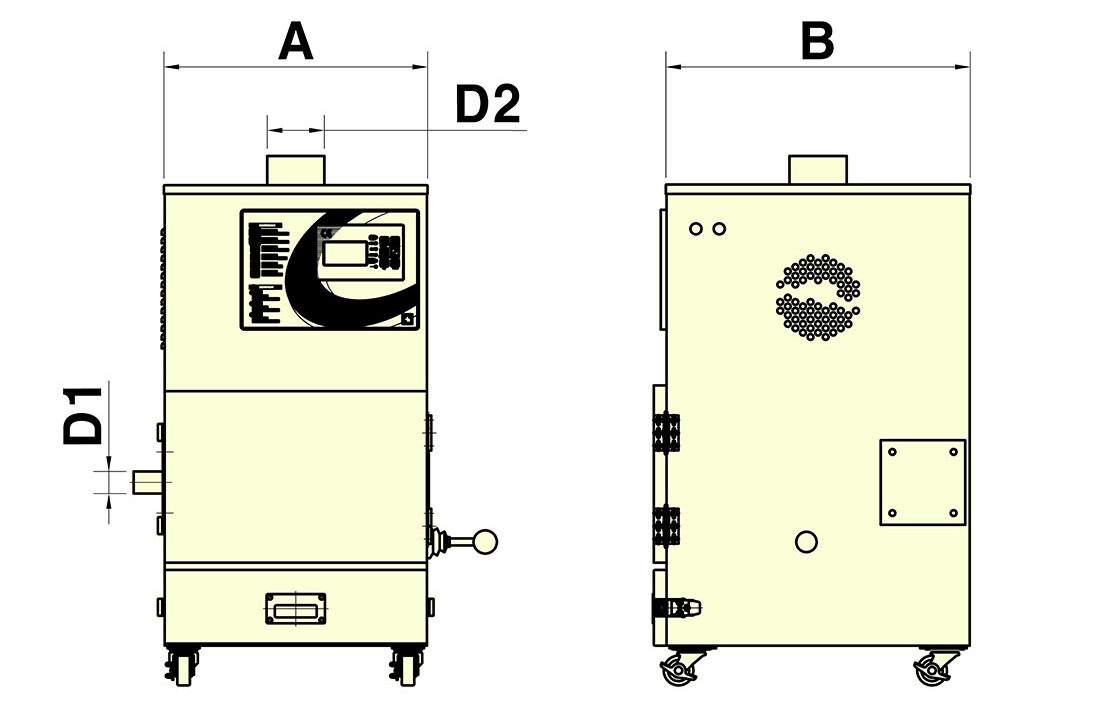

TYPE	Power	Airflow (CMM)	Static Pressure (mmAq)	Motor (kW)	A1-W	B1-H	D1-Inlet(Ø)	D2-Outlet(Ø)	H-Height	Weight (kg)
MSR-229	220V Single Phase, 220V/380V Three Phase 60Hz, 440V(Option), 50Hz(Option)	1.7	1,700	0.5	450	525	40	100	645	65
MSR-329		2.9	1,400	0.85	450	545	40	100	895	70
MSR-339		2.9	2,300	1.5	450	545	45	100	895	70
MSR-429		4.2	2,200	1.9	450	545	45	100	935	80
MSR-529	220V/380V Three Phase 60Hz, 440V(Option), 50Hz(Option)	6.2	2,200	2.6	520	545	65	100	975	100
MSR-629		6.2	2,800	3.7	520	545	65	100	975	100
MSR-639		6.2	3,200	4.6	520	545	65	100	975	100
