Dust Collectors
DUCLEAN is an eco-friendly company dedicated to environmental protection.
Clean Room Optimized Dust Collector
APC Series
Features
Clean room optimized dust collector that prevents on-site contamination during filter replacement and dust recovery
Filter Type
Cartridge Filter
Applications
Secondary battery process, fume-generating operations, laser machining, mixing, powder feeding, PCB machining, bagging, metalworking, stone engraving, pneumatic conveying inlet, sanding, casting, blending, drilling, cutting, trimming, shredding, etc.
Installation Cases Specifications
Specifications

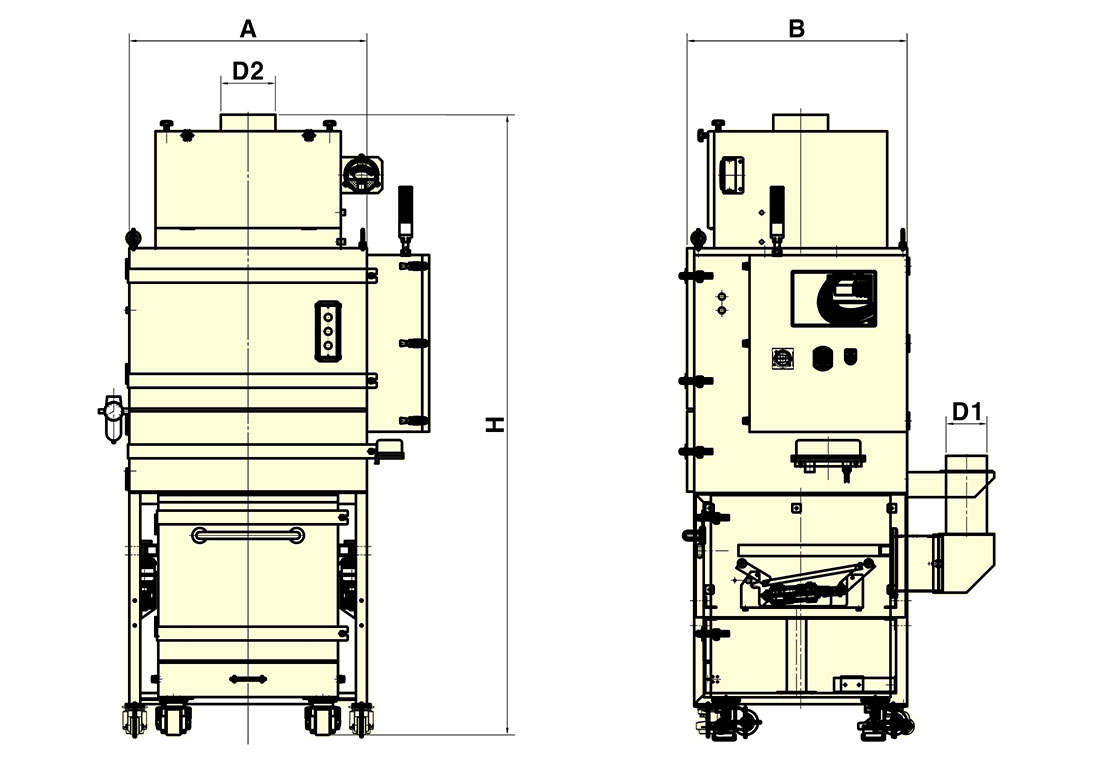

| TYPE | Power | Airflow (CMM) | Static Pressure (mmAq) | Motor (kW) | Dimensions (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A1-W | B1-H | D1-Inlet(Ø) | D2-Outlet(Ø) | H-Height | ||||||
| APC-300/500 | 220V/380V Three Phase 60Hz,
440V(Option), 50Hz(Option) 25 | 450 | 3.7 | 860 | 800 | 150 | 200 | 2,250 | 325 | |
| APC-300/750 | 25 | 700 | 5.5 | 860 | 800 | 150 | 200 | 2,250 | 330 | |
Filter Specifications
| TYPE | 크기(WxL) | 수량 | 여과면적(㎡) |
|---|---|---|---|
| APC-300/500 | 145 x 500L | 9 | 16.88 |
| APC-300/750 |
특징
- 필터 교체 및 분진 회수 시 발생하는 현장 오염을 완벽하게 차단
- 필터실과 분진 서랍을 분리하여 외부에서 처리 가능
- 필터
효율적인 필터 크리닝(AP타입 적용시)
TURBO BLOWER 정보
