Dust Collectors
DUCLEAN is an eco-friendly company dedicated to environmental protection.
Dust Scattering Prevention Dust Collector
APS Series
Features
Zero dust scatter during filter replacement and dust disposal
Filter Type
Cartridge Filter
Applications
Secondary battery process, laser machining, mixing, powder feeding, PCB machining, bagging, metalworking, stone engraving, pneumatic conveying inlet, sanding, casting, blending, drilling, cutting, trimming, shredding, etc.
Installation Cases Specifications
Specifications

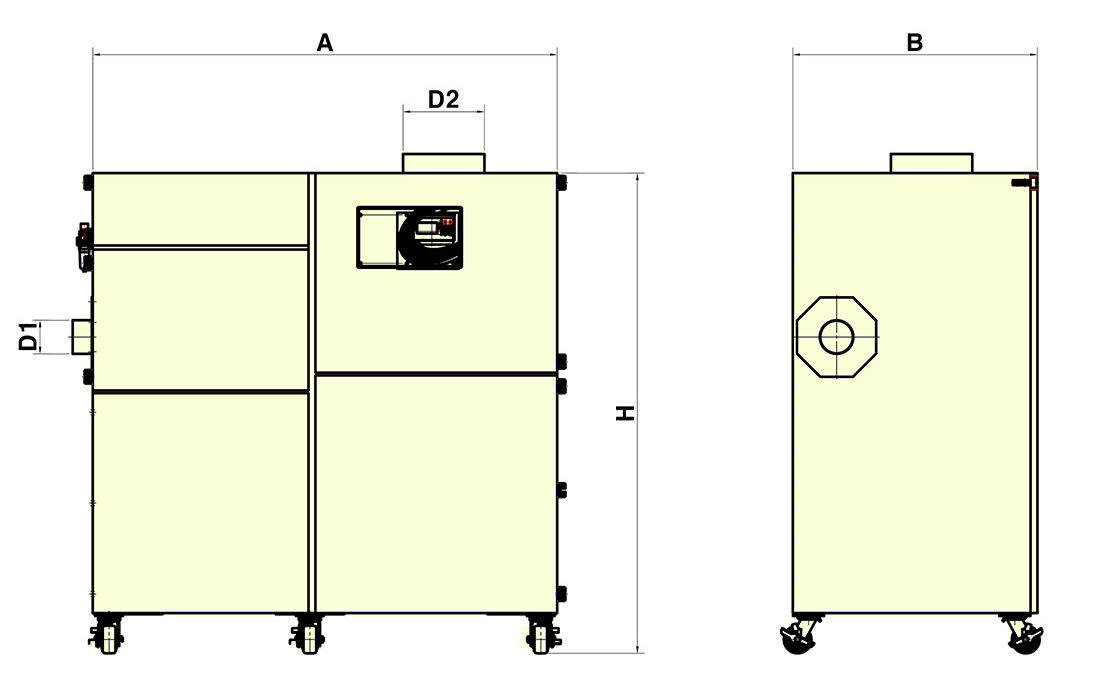

| TYPE | Power | Airflow (CMM) | Static Pressure (mmAq) | Motor (kW) | Dimensions (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A1-W | B1-H | D1-Inlet(Ø) | D2-Outlet(Ø) | H-Height | ||||||
| APS-300 | 220V/380V Three Phase 60Hz,
440V(Option), 50Hz(Option) | 40 | 230 | 2.2 | 1,700 | 950 | 248 | 298 | 1,830 | 600 |
Filter Specifications
| TYPE | 크기(WxL) | 수량 | 여과면적(㎡) |
|---|---|---|---|
| APS-300 | Φ165 x 350L x 75 | 9 | 16.54 |
특징

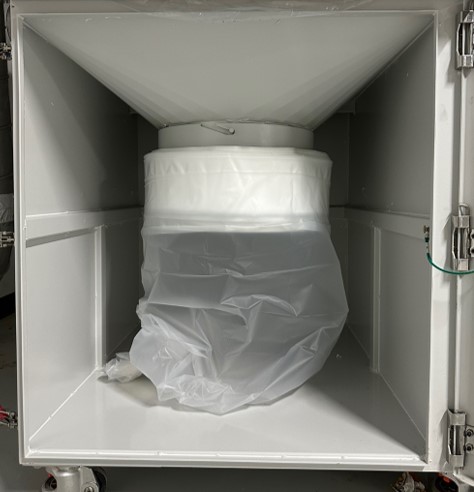

- BIBO(Bag In Bag Out) 구조 적용 — 분진처리용 연속 비닐 카트리지 적용
- 필터
효율적인 필터 크리닝(AP타입 적용시)
TURBO BLOWER 정보
