Dust Collectors
DUCLEAN is an eco-friendly company dedicated to environmental protection.
Workbench Integrated Dust Collector
MST Series
Features
Compact design that maximizes limited factory floor space
Filter Type
Bag Filter
Applications
Drilling, trimming, mixing, sanding, grinding, grinder operations
Installation Cases Specifications
Specifications

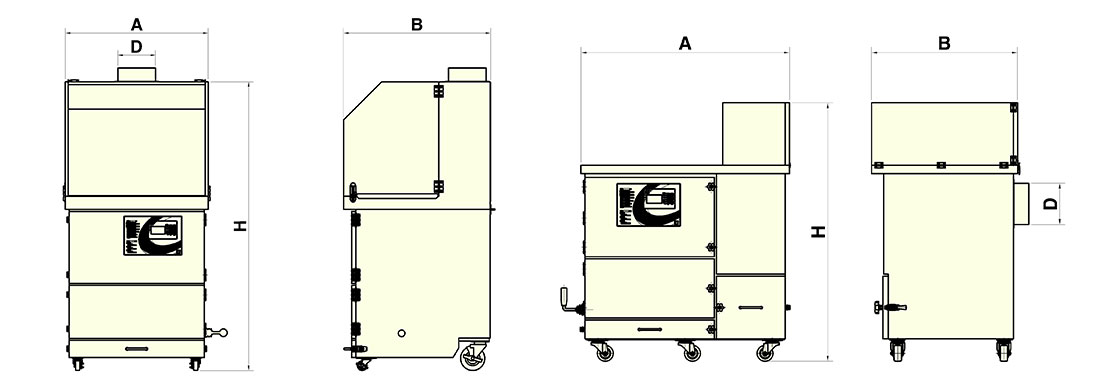

| TYPE | Power | Airflow (CMM) | Static Pressure (mmAq) | Motor (kW) | Dimensions (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A1-W | B1-H | D1-Inlet(Ø) | D2-Outlet(Ø) | H-Height | ||||||
| MST-200 | 220V Single Phase, 220V/380V Three Phase 60Hz, 440V(Option), 50Hz(Option) | 25 | 230 | 1.5 | 750 | 770 | - | 200 | 1,585 | 145 |
| MST-200CB | 25 | 230 | 1.5 | 1,000 | 700 | - | 200 | 1,260 | 165 | |
Filter Specifications
| TYPE | 크기(WxL) | 수량 | 여과면적(㎡) |
|---|---|---|---|
| MST-200 | 420 x 200 | 16 | 2.688 |
| MST-200CB |
- 특징
컨트롤러
사용자의 편의를 가장 먼저 생각하는 디지털 컨트롤러
- LED 터치 스위치 동작으로 시인성이 향상되었으며 더욱 세련된 판넬, 심플한 디자인을 자랑 — 방진, 방수 성능이 뛰어남
