Mist CleanerDMC Series
Features
Compact structure to utilize narrow spaces
Application
Machining Center, Automatic Lathe, Milling, Homing Machine, Tapping Machine, Electric Discharge Machine, etc.

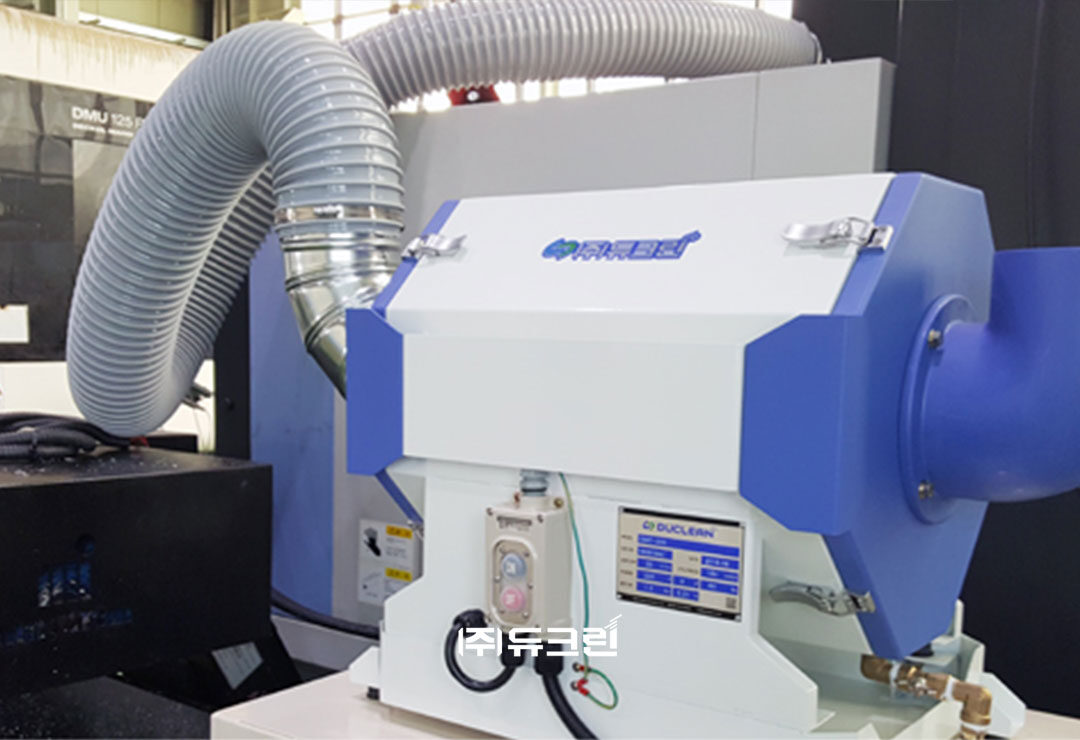

Installation Cases
Installation Cases- Specifications

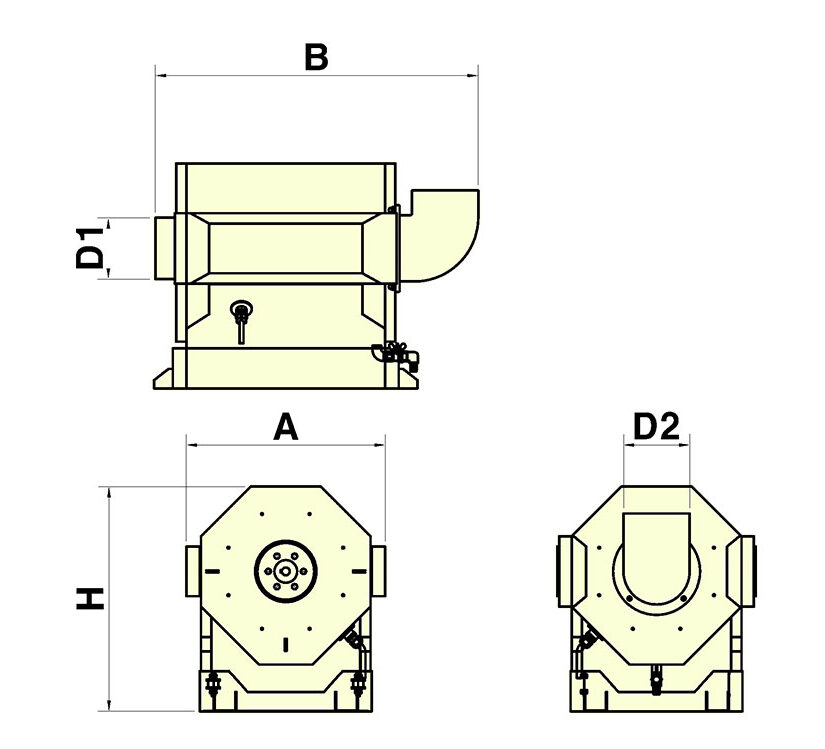

Product Specifications
| TYPE | Power | Air volume(CMM) | Static pressure(mmAq) | Output(Kw) | Size | Weight(kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A1 Width | B1 Length | D1 Inlet(Ø) | D2 out let(Ø) | H overall height | ||||||
| DMC-50 | 220V/380V, 3p 60Hz | 7 | 150 | 0.4 | 480 | 670 | 125 | 160 | 545 | 40 |
| DMC-100 | 12 | 150 | 0.75 | 480 | 670 | 125 | 160 | 545 | 45 | |
| DMC-150 | 15 | 150 | 1.1 | 480 | 780 | 150 | 160 | 545 | 58 | |
| DMC-200 | 20 | 150 | 1.5 | 480 | 780 | 150 | 160 | 545 | 60 | |
- Features
DMC SERIES
Small size and light weight
- It can be installed without restrictions even in high and narrow places such as the upper part of machine tool and the maintenance is simple.
Maximum efficiency of collection and ease of use
- 99.7% mist can be collected by special structure filter
- No need for tools and special skills, so even beginners can easily replace filters
Compact Mist Cleaner
- Small size improves space utilization
- Ultra compact and low noise mist cleaner suitable for indoor work
- Maximizes mist collecting efficiency with installed AFTER Filter (optional)
Mounted Oil Pan (Optional)
- Oil pan can be installed to prevent leakage of oil
It's made by the confidence of the product
NEVER STOP A/S SERVICE

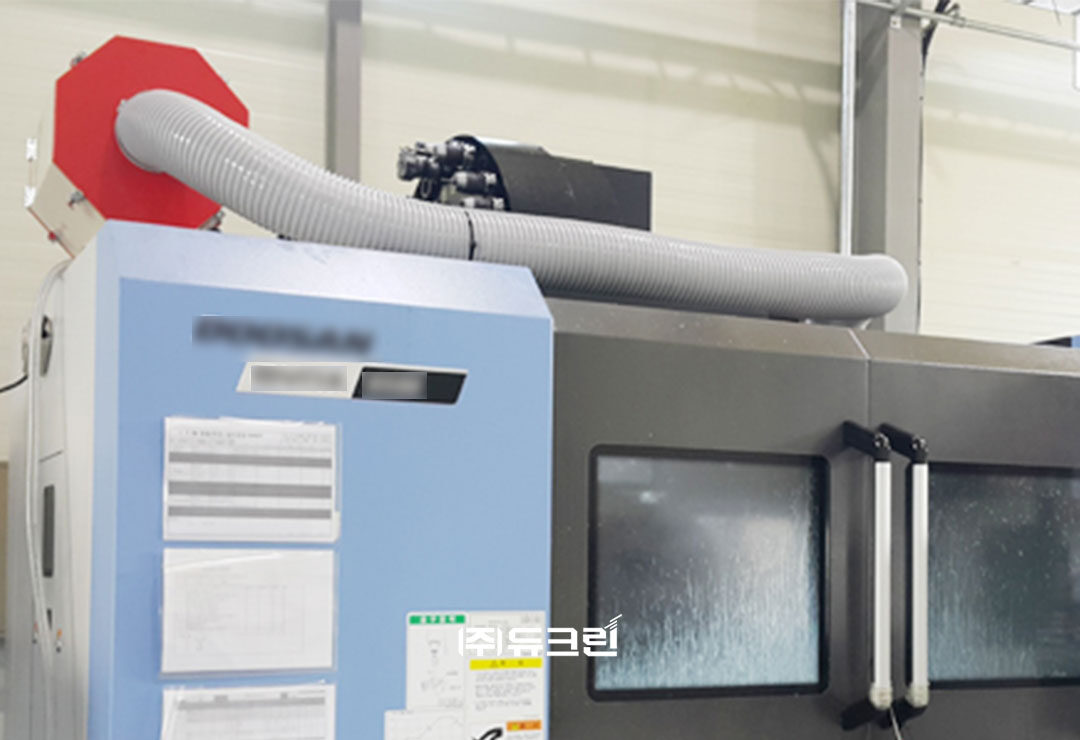

Installation Cases
